mst-uvled-bench-l-395

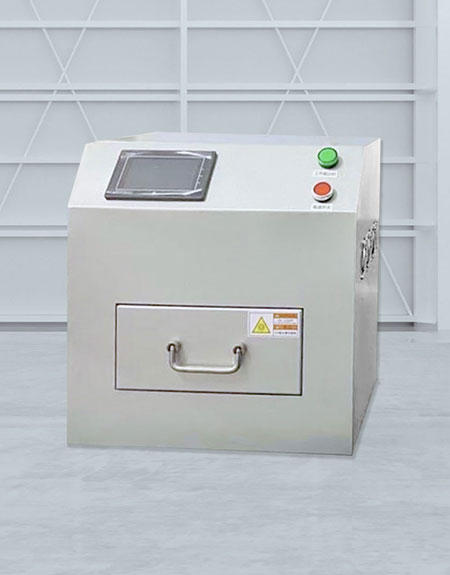

MST UVLED Bench L395

Curing MST UVLED Benchtop L395 for 260 x 260mm products

Optical power: 500mw/cm2 with 395nm.

Curing size: 260x260mm, low power consumption and temperature.

Applicable to product size maximum width 260mm and product thickness maximum 60mm.



LED: UVLED

  • Wavelength: 395nm.
  • Options: 365nm, 385nm, 405nm
  • LED life: 20000H
  • Optic power: 395nm: 500mw/cm2
  • Curing size: 260mm*260mm
  • Distance: 30mm~150mm
  • Power: 500W
  • Cooling: Fan cooling
  • Temperature: ≤50ºC
  • Dimension:
    • outside:500*500*453mm
    • inner: 260*260*150mm
  • Power supply: 220VAC/50HZ – 2m cable
